Description

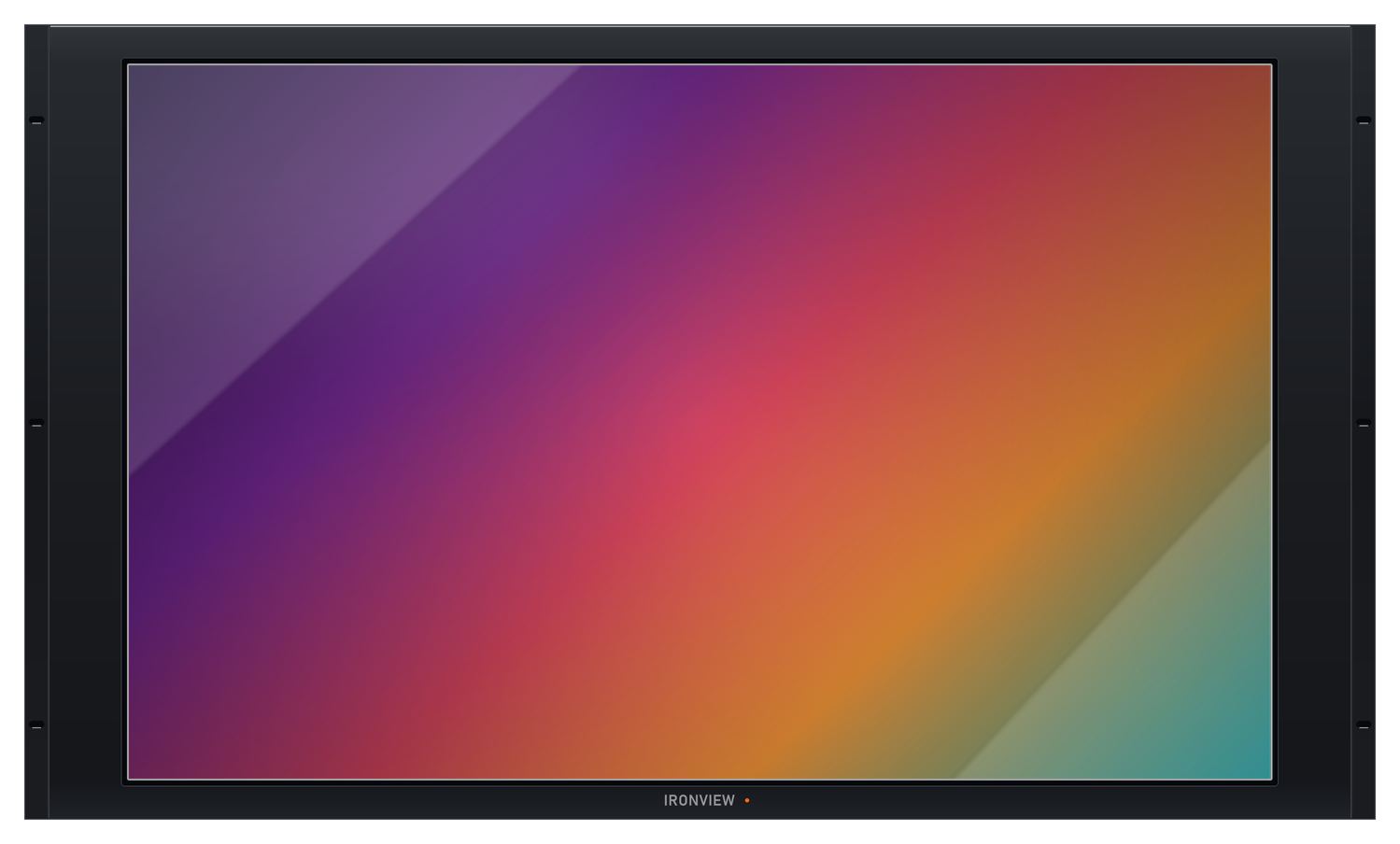

The IronView 19" Widescreen Industrial Touch Monitor (16:10, 1440×900) is a rugged, metal-cased industrial display built for 24/7 duty. Available in rack-mount, open-frame and panel-mount form, with an IP65-sealed front and projected-capacitive multi-touch.
Key highlights
- Industrial-grade metal chassis, fanless, 24/7 rated
- IP65 sealed front bezel; ~50,000 h panel MTBF
- Capacitive (PCAP) multi-touch — works with gloves
- Full I/O: AV · BNC · VGA · HDMI · USB
- Wide-voltage input (9–36V DC) or 100–240V AC
- VESA mounting; sunlight-readable option available
Specifications
| Screen size | 19" |
|---|---|
| Aspect / resolution | 16:10 · 1440×900 |
| Brightness | 350 cd/m² |
| Contrast | 1000:1 |
| Viewing angle (H/V) | 170° / 170° |
| Response time | 8 ms |
| Touch | Capacitive (PCAP), multi-touch |

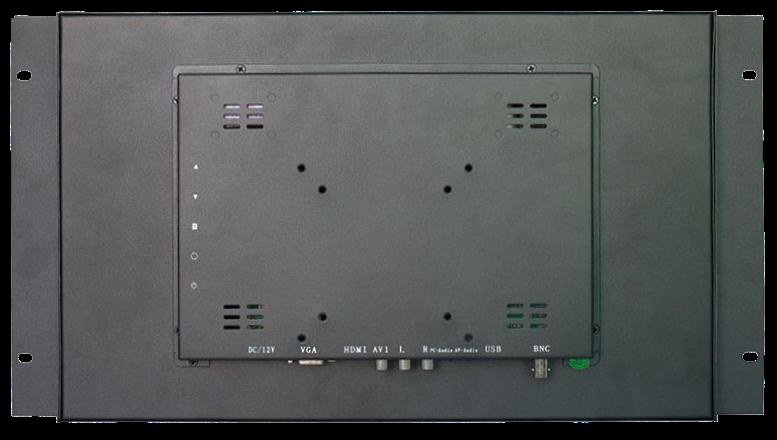

| Interfaces | AV · BNC · VGA · HDMI · USB |
| Front rating | IP65 |
| Operating temp | 0…50°C |
| MTBF | 50,000 h |

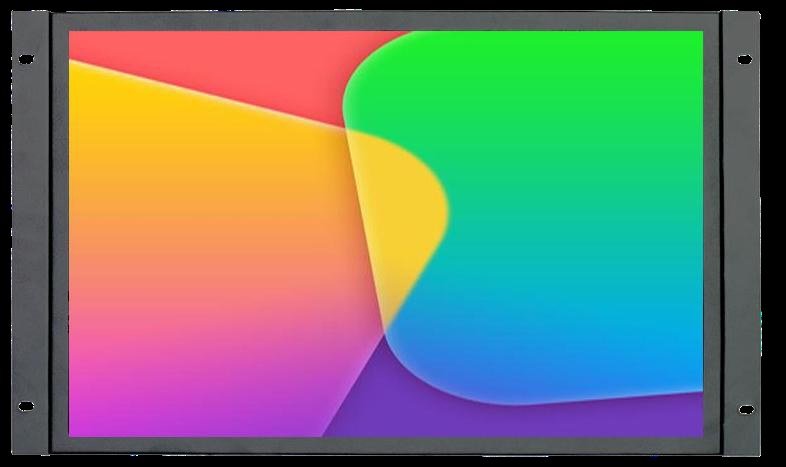

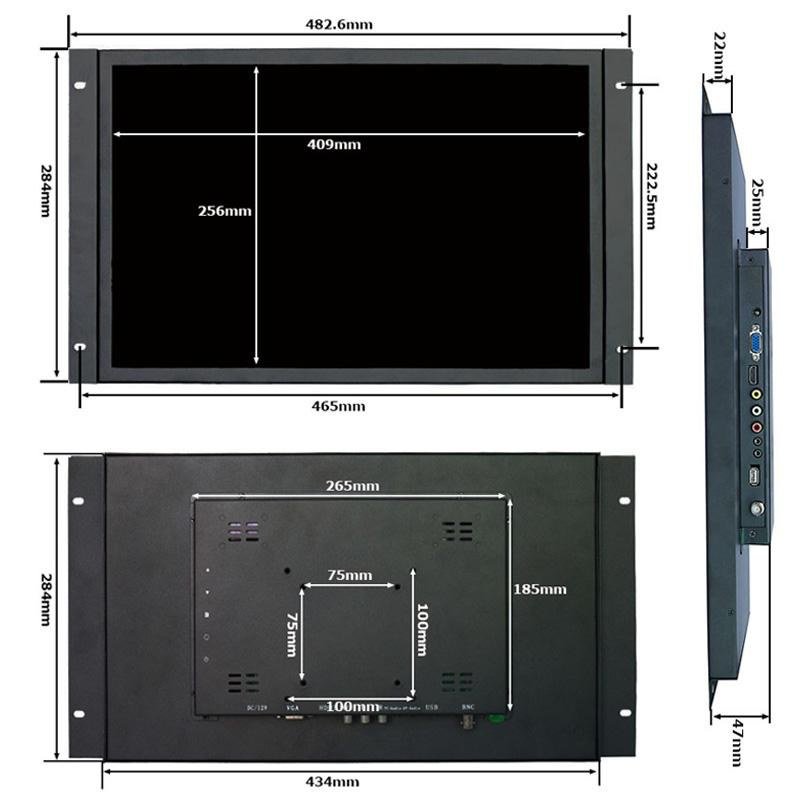

| Mounting | Rack / open-frame / panel mount, VESA 75 |
| Power | 9–36V DC or 100–240V AC |
| Warranty | Unlimited |
Volume & OEM pricing
Tiered discounts from 5 units, with custom and OEM builds available. Request a volume quote →
Typical applications
SCADA & control rooms, factory automation/HMI, marine, medical, kiosk and CCTV. See applications →
